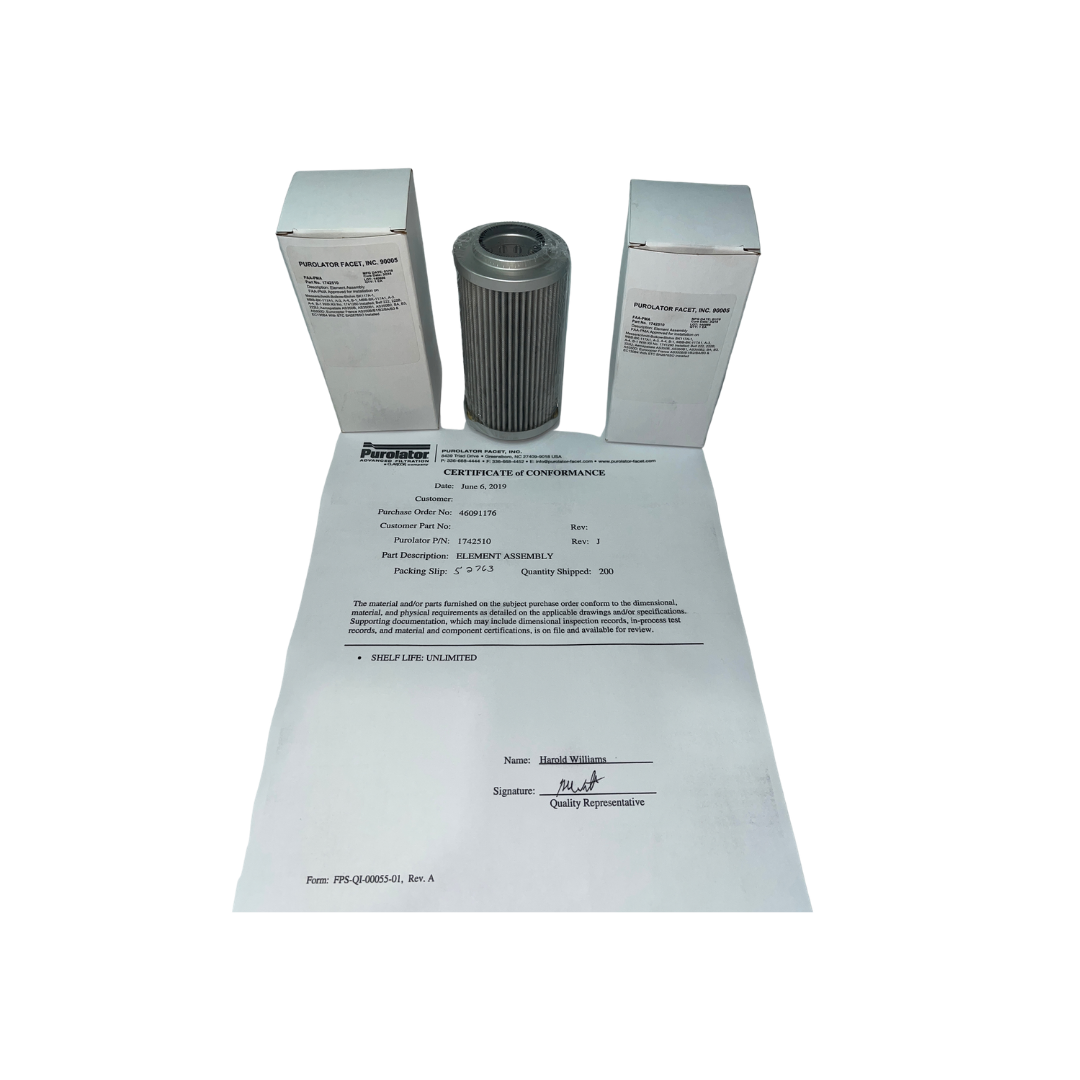

The Purolator Facet 1742510 Filter Element Kit (often designated as 1742510-01) is a high-efficiency, aerospace-grade micro-porous hydraulic filter element manufactured by Purolator Facet, Inc. Engineered specifically for high-pressure aircraft hydraulic systems, actuation assemblies, and fluid power loops, the 1742510 filter element protects delicate hydraulic valves, pumps, and flight control actuators by capturing microscopic particulate contamination. Supplied as a complete service kit including replacement O-rings, it maintains low differential pressure and high particulate holding capacity under extreme thermal and pressure cycling environments commonly encountered in commercial and military aviation MRO operations.

Technical Specifications & Cross-References

• Manufacturer: Purolator Facet, Inc. / CLARCOR Industrial Air
• Part Number / SKU: 1742510 / 1742510-01
• Component Type: Hydraulic Fluid Filter Element Kit (Includes O-Ring Seals)
• Media Type: Pleated Stainless Steel Mesh / Synthetic Micro-Glass Media
• Filtration Rating: Fine Micron Absolute Rating (Designed for high-pressure fluid cleanliness)
• Fluid Compatibility: Phosphate ester synthetic hydraulic fluids (Skydrol / HyJet), hydrocarbon hydraulic oils (MIL-PRF-5606 / MIL-PRF-83282), and lubricating oils
• Operating Pressure: High-pressure hydraulic system operational rating
• Temperature Range: -65°F to 275°F (-54°C to 135°C) continuous hydraulic service

Approved Specifications & Aviation Conformance:

Purolator Facet 1742510 filter elements meet rigorous aviation quality baselines and airframe manufacturing standards:

• FAA-PMA Approval: Certified under Federal Aviation Administration Parts Manufacturer Approval (FAA-PMA) for direct airframe replacement.
• ISO 16889 Multi-Pass Tested: Verified for high beta ratio filtration efficiency and particulate retention capability under fluid flow fatigue.
• Fluid Immunity: Non-reactive construction immune to chemical breakdown caused by synthetic fire-resistant hydraulic fluids.

Key Features & Performance Benefits

• Superior Contaminant Retention: High-density pleated media maximizes surface area, capturing metallic wear particles, silt, and carbon particulates down to low micron levels.
• Low Differential Pressure Drop: Optimized pleat spacing allows high fluid flow rates with minimal initial resistance, reducing energy loss in hydraulic power packs.
• High Collapse Resistance: Built with an internal perforated stainless steel support core to withstand high differential pressure spikes without element collapse.
• Complete Servicing Kit: Includes pre-packaged elastomer O-rings to ensure a leak-free, rapid housing seal during scheduled maintenance intervals.
• Exceptional Structural Integrity: End caps and outer wraps resist mechanical shock, high-frequency vibration, and fluid surge pressures.

Typical Applications

• Aircraft Hydraulic Systems: Main filtration element for primary and secondary flight control hydraulic power supply units.
• Landing Gear & Actuation Maintenance: Protects landing gear retract/extend mechanisms, brake valves, and thrust reverser actuators from particle scoring.
• Ground Support & MRO Equipment: Used in hydraulic test benches, ground power carts, and flush carts servicing aviation fluid loops.
