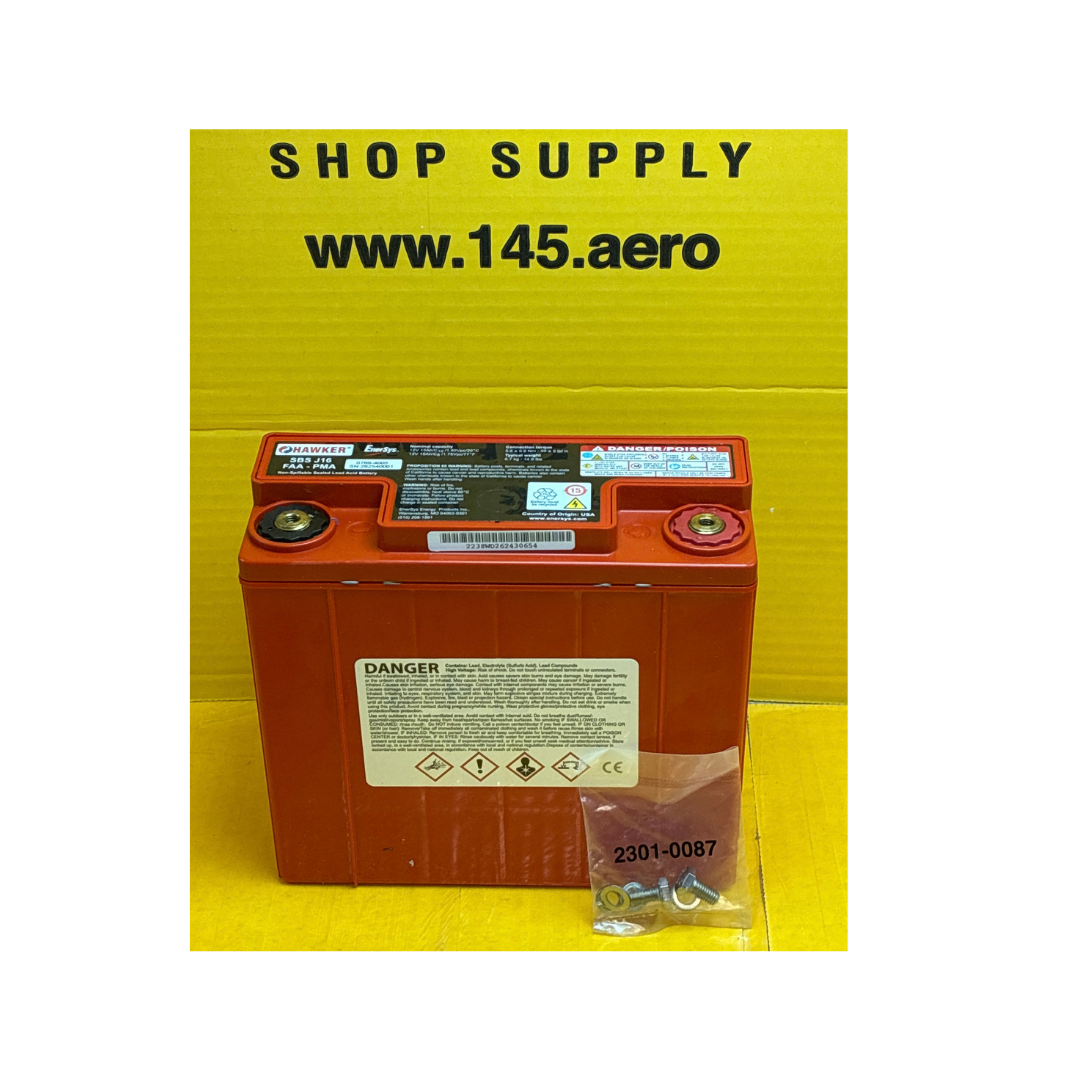

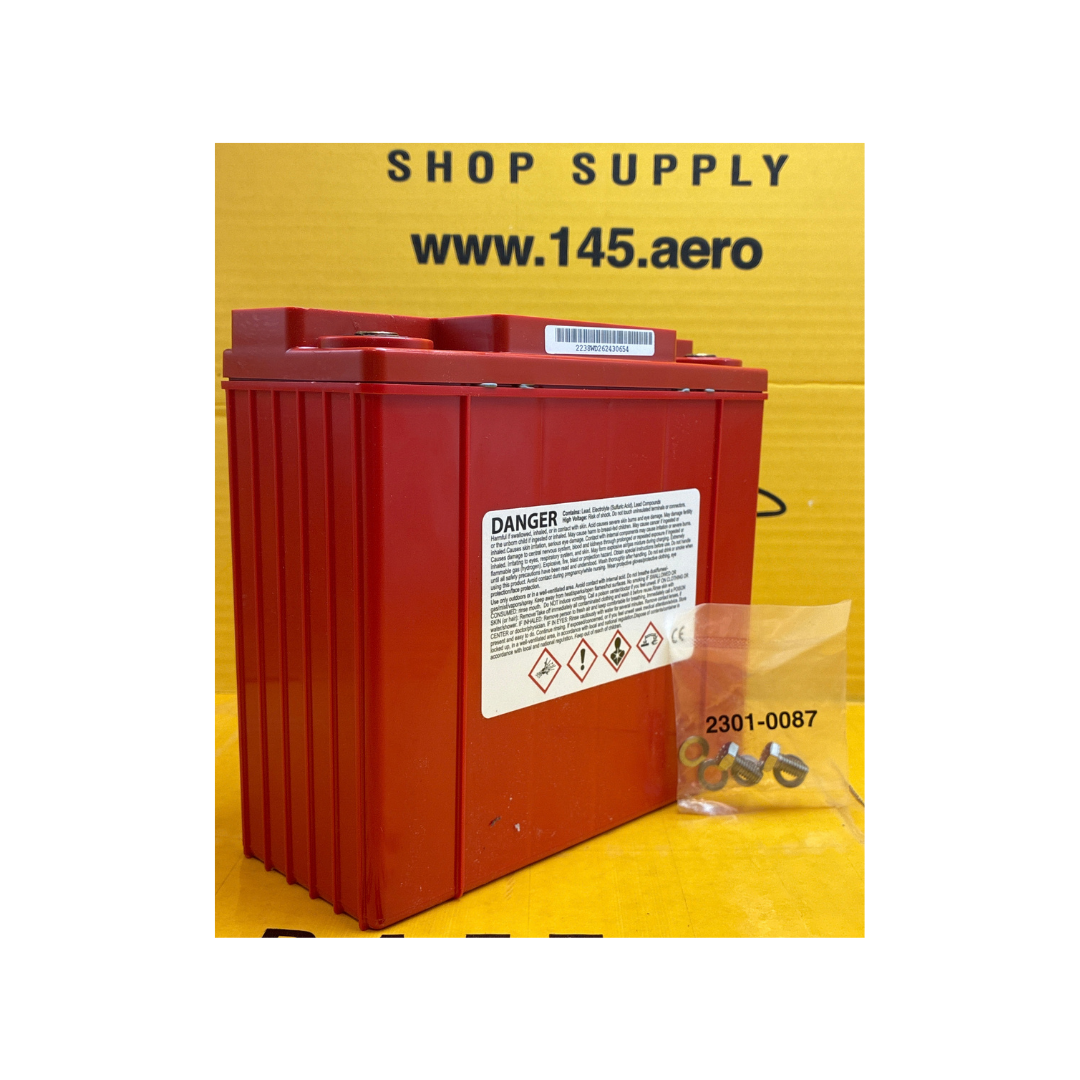

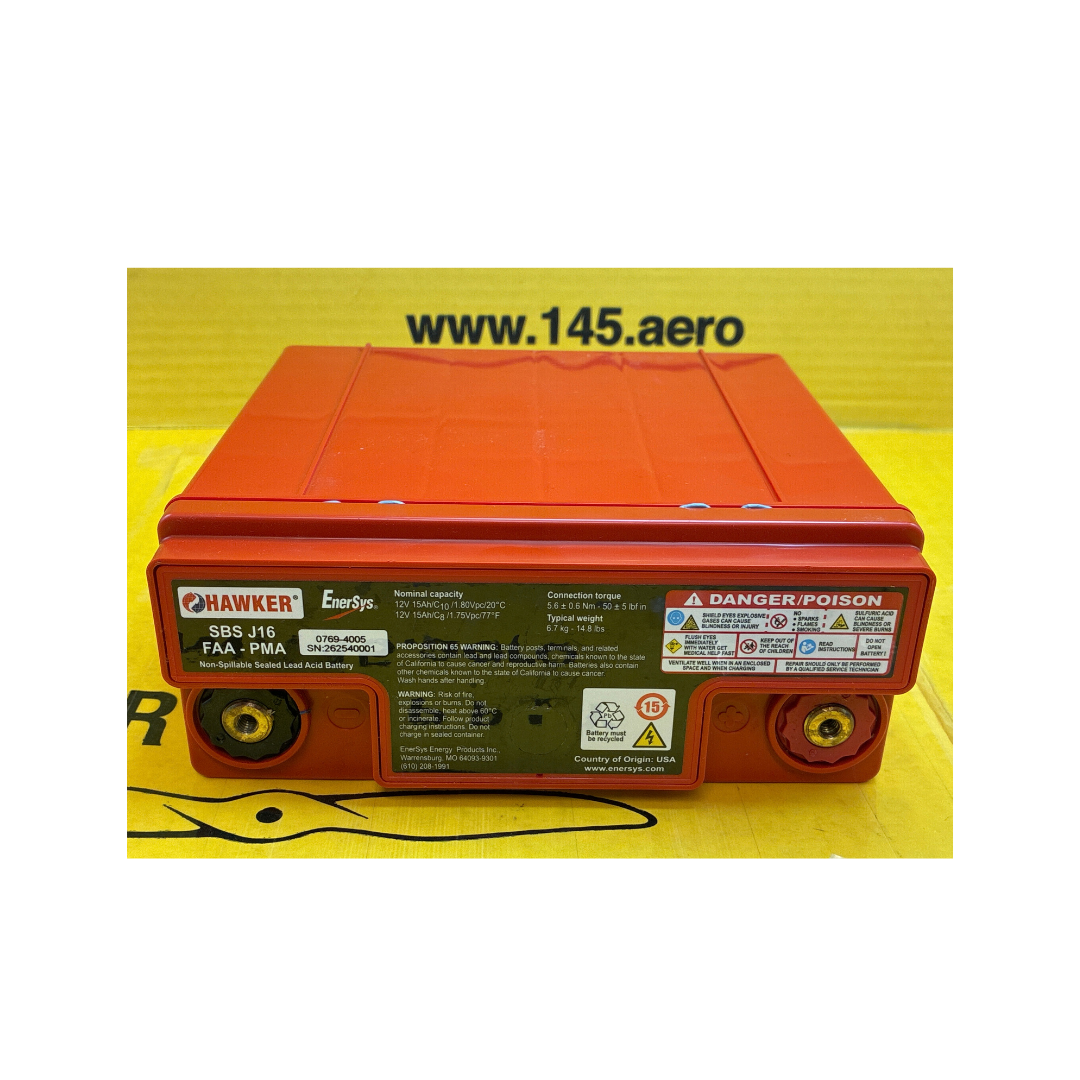

The Hawker Enersys 0769-4005C0N6 (also cataloged under Enersys Cyclon / Genesis series) is a premium, high-rate discharge 12-Volt Sealed Lead-Acid (VRLA) battery engineered for critical aircraft auxiliary power units (APU), standby emergency avionics buses, and engine starting applications in Beechcraft, Hawker, and general aviation airframes. Utilizing advanced Absorbed Glass Mat (AGM) and pure lead grid technology, the 0769-4005C0N6 delivers extremely low internal resistance, rapid recharge acceptance, and exceptional cold-cranking performance without requiring electrolyte replenishment. Sealed in a rugged flame-retardant casing, this non-spillable battery is designed for demanding high-altitude, high-vibration flight environments, ensuring reliable emergency backup power when generator power is interrupted.

Electrical Specifications, Capacity & Life Limits

• Manufacturer / Brand: Hawker Enersys Inc. / Cyclon Genesis
• Part Number / SKU: 0769-4005C0N6
• Nominal Voltage: 12 Volts DC
• Nominal Capacity (10-Hour Rate / 20-Hour Rate): 4.5 Ah to 5.0 Ah (5,000 mAh)
• Chemistry / Technology: Valve-Regulated Lead-Acid (VRLA) / Absorbed Glass Mat (AGM) Pure Lead
• Peak Discharge Current: Up to 200+ Amps (Short-circuit peak discharge capability for high-inrush starting loads)
• Internal Resistance: Very low (< 10 mΩ) for optimal energy delivery and fast recharge acceptance
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C) continuous service
• Design Calendar Life / Shelf Life:
  • Design Life: Up to 8 to 10 years in float standby service at 25°C.
  • Shelf Life (Uncharged/Stored): Up to 2 years at 25°C (77°F) before requiring a refresh charge, thanks to an ultra-low self-discharge rate (< 2% per month).
• Terminal Type: Faston / Threaded Stud / M5 Aerospace Terminals
• Case Material: High-impact, flame-retardant UL94-V0 polyolefin container

Approved Specifications & Aviation Conformance:

The Hawker Enersys 0769-4005C0N6 battery conforms to strict FAA, DOT, and military transport guidelines:

• DOT & IATA Non-Spillable Certification: Classified as non-spillable under ICAO/IATA Special Provision A67 and UN2800 for unrestricted air transport and maintenance logistics.
• DO-160 Environmental Testing: Tested for altitude pressure changes, shock resistance, operational vibration, and thermal runaway prevention.
• FAA-PMA / STC Applicable: Eligible for installation in certified aircraft standby power units and emergency lighting buses under Part 23 and Part 25 maintenance regulations.

Key Features & Performance Benefits

• Pure Lead AGM Technology: Thinner pure lead plates maximize active surface area, providing maximum power density and higher discharge currents than conventional lead-acid batteries.
• Maintenance-Free Sealed Construction: Recombinant gas technology eliminates the need to check water levels or manage acid spills during scheduled maintenance intervals.
• Extended Storage & Service Life: Superior grid corrosion resistance offers an operational calendar life of up to 10 years and long shelf storage without degradation.
• Extreme Thermal Performance: Maintains reliable discharge capacity in sub-zero high-altitude temperatures and high-engine-bay thermal environments.

Typical Applications

• Aircraft Standby Avionics & Flight Instruments: Provides emergency backup power to essential flight displays, attitude indicators, and navigation radios.
• Hawker Beechcraft Auxiliary Systems: Used in corporate jet emergency power packs, cabin lighting backup, and APU control circuits.
• Ground Support & Portable Power Units: Serves as high-reliability 12V DC power source for ground test equipment and flight-line servicing rigs.
