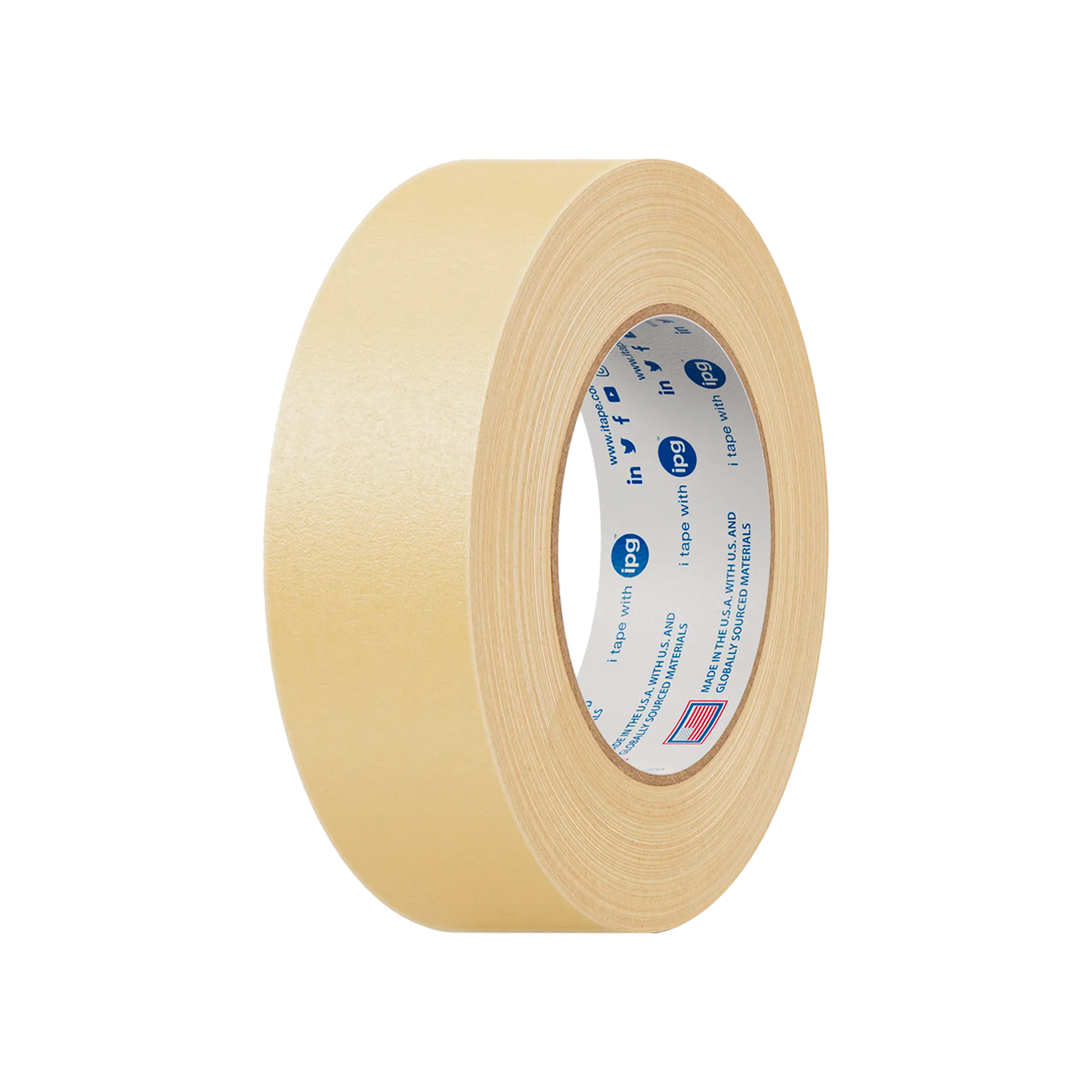

IPG 519 is a high-quality, medium-grade paper masking tape engineered by Intertape Polymer Group for demanding industrial, aerospace, and defense applications. Featuring a conformable, semi-bleached crepe paper backing combined with a high-performance pressure-sensitive natural and synthetic rubber blend adhesive, this tape provides stable adhesion, balanced tensile strength, and clean removal properties. IPG 519 is specifically qualified to meet multiple rigorous federal and military procurement specifications, making it a reliable utility across defense vehicle depots, manufacturing stations, and fleet overhaul bays where multi-surface masking integrity is crucial.

Technical Specifications & Cross-References

• Manufacturer: Intertape Polymer Group (IPG)
• Product Code / Series: 519 Series
• Total Thickness: 6.0 mils (0.15mm)
• Backing Material: Semi-Bleached Crepe Paper
• Adhesive Type: Solvent-Cast Natural & Synthetic Rubber Blend
• Adhesion to Steel: 36 oz/in width
• Tensile Strength: 23 lbs/in width
• Elongation at Break: 7%
• Color: Natural / Beige
• Bake Temperature Resistance: Up to 180°F (82°C) for up to 1 hour
• UV Exposure Resistance: Up to 5 hours maximum baseline

Approved Specifications & Industrial Conformance:

This premium packaging and processing tape is manufactured under rigorous controls and can be formally qualified to satisfy the following federal procurement and manufacturing guidelines:

• Federal Specification (Tape, Packaging): Compliant with PPP-T-42C, Type I
• Federal Specification (Tape, Masking): Compliant with UU-T-106, Type I
• Commercial Item Description (C.I.D.): Fully conforms to A-A-883, Type I
• ASTM Standard Reference: Aligns with standard performance metrics governed under ASTM D6123 / D6123M

Key Features & Performance Benefits

• Comprehensive Government Compliance: Fully meets classical military and federal specifications, easing supply chain tracking and quality control sign-offs in defense manufacturing.
• Thermal Bake Stability: Capable of withstanding specialized short-term air-dry or bake cycles up to 180°F (82°C) without adhesive transfer, charring, or leaving severe visual residue fields.
• Consistent Conformability: Premium crepe composition stretches and molds easily around sharp architectural curves, complex industrial brackets, and uneven geometric surfaces.
• Balanced High-Tensile Performance: Provides a stable 23 lbs/in tensile framework that resists premature tearing or snapping during machine application or high-tension bundle pulls.
• UV Protection Window: Engineered to withstand direct or indirect ultraviolet light exposure for up to 5 hours, ensuring structural reliability during short-term outdoor staging.

Typical Applications

• Industrial Paint Masking: Deployed as a primary masking layer for air-dry automotive spray setups, maritime fleet touch-ups, and fiberglass boat manufacturing steps.
• Hardware Bundling and Splicing: Extensively utilized for structural parts bundling, light-duty package sealing, carpet pad splicing, and high-volume industrial mailroom tabbing.
• Aviation & Depot Protective Masking: Ideal for protecting critical surface finishes, non-conductive panels, and high-tolerance components from mechanical scratching or debris tracking during component routing.
