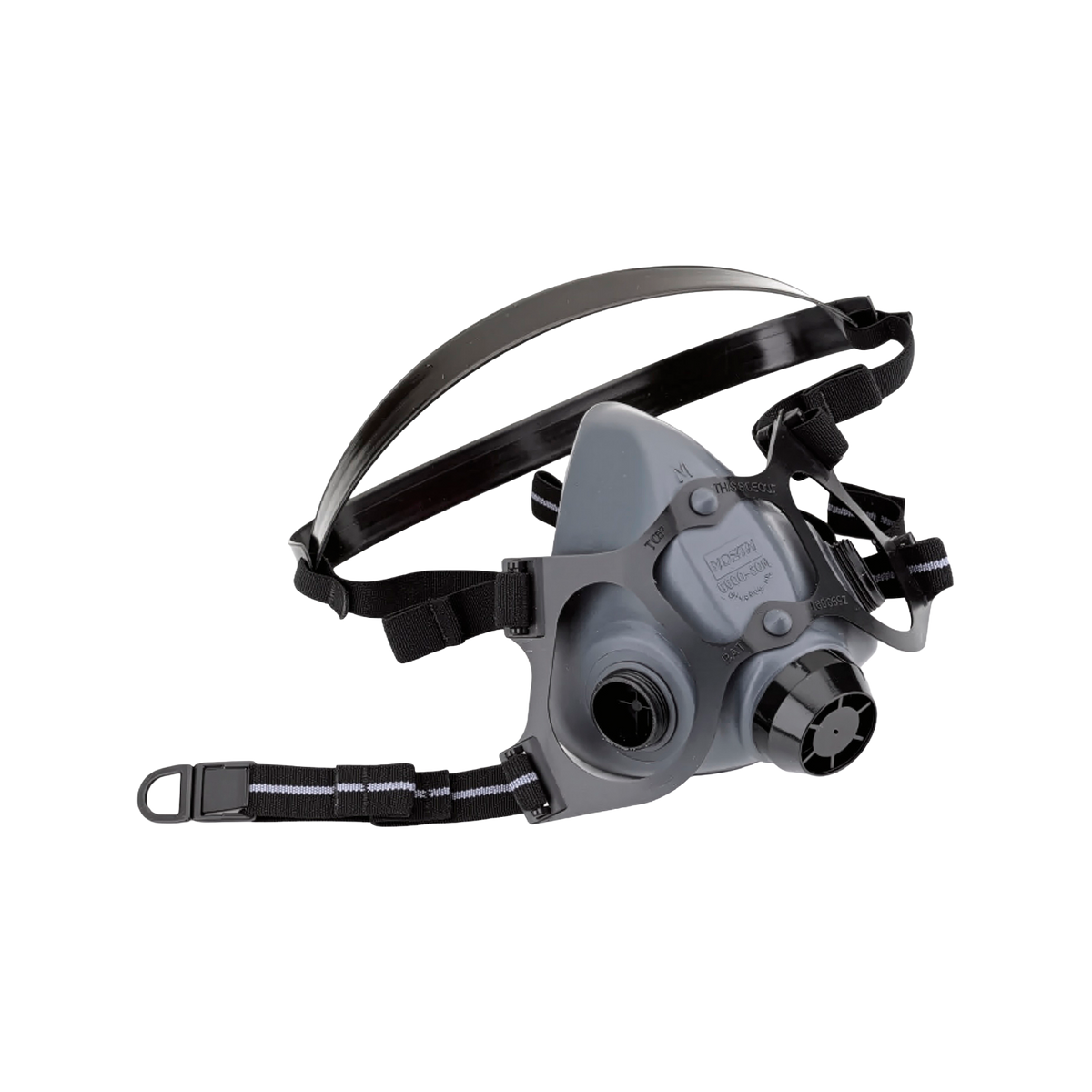

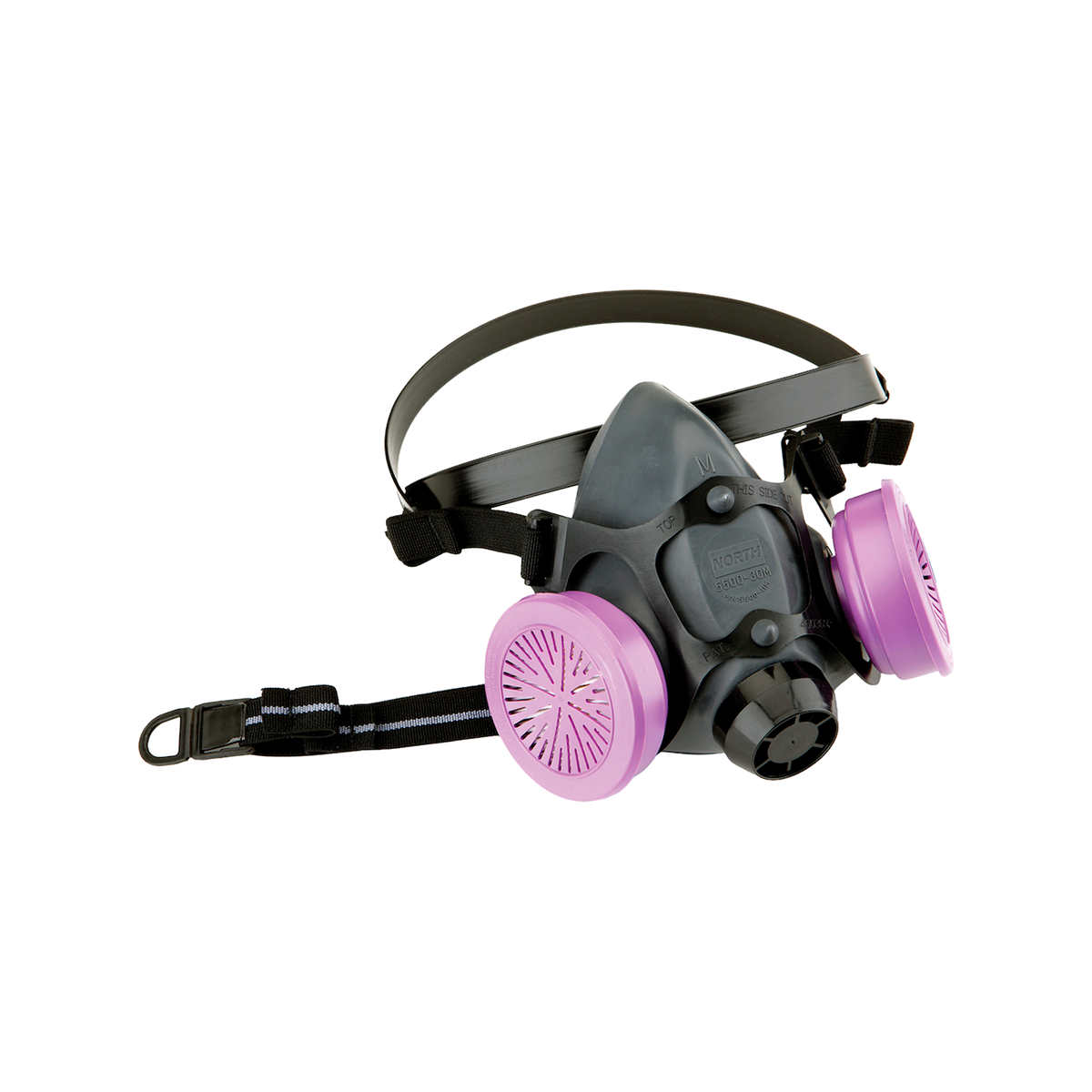

The North 5500 Series Half Mask Respirator is an economical, high-performance reusable half-mask engineered for demanding industrial, MRO, chemical handling, and paint-spray environments. Crafted from a soft, non-allergenic elastomeric polymer, the North 5500 provides a secure, comfortable seal while offering a cost-effective alternative to silicone facepieces without sacrificing seal integrity. Equipped with dual N-Series cartridge connectors, it is fully compatible with the complete range of Honeywell North® thread-on cartridges, filters, and combination elements. Its low-profile design maximizes the worker's field of vision and easily integrates under safety glasses, goggles, and face shields.

Technical Specifications & Cross-References

• Manufacturer: North®
• Product Line: North® 5500 Series Reusable Half Masks
• Facepiece Material: Thermoplastic Elastomer (TPE) / Non-Allergenic Elastomer (Latex-Free)
• Cartridge Connection Type: Dual N-Series Thread-On Connectors
• Harness Type: Dual-Cradle Head Strap Assembly with Elastic Neck Straps
• Available Sizes: Small (550030S), Medium (550030M), Large (550030L)
• Exhalation Valve: Low-resistance diaphragm assembly for efficient heat and moisture evacuation
• System Versatility: Compatible with PAPR (Powered Air-Purifying Respirator) and Supplied Air configurations

Approved Specifications & Regulatory Conformance:

The Honeywell North 5500 Series meets rigorous occupational safety and health standards:

• NIOSH 42 CFR 84 Approval: Fully certified under NIOSH standards when configured with approved Honeywell North N-Series cartridges and particulate filters.
• OSHA Assigned Protection Factor (APF): APF = 10 when properly fit-tested and maintained in accordance with OSHA 1910.134.
• ANSI & CSA Compliance: Conforms to ANSI Z88.2 respiratory protection requirements and CSA Z94.4 criteria.

Key Features & Performance Benefits

• Economical Elastomeric Facepiece: Combines soft, non-irritating comfort with high chemical resistance at a budget-friendly price point for facility-wide deployment.
• Contoured Sealing Edge: Engineered with variable wall thickness along the face seal to prevent pressure points and adapt to diverse facial contours.
• Swept-Back Cartridge Profile: Low-profile positioning keeps cartridges back and out of the line of sight, preventing snagging and interference with eyewear.
• Threaded Dual N-Series Connectors: Direct screw-on mechanism prevents accidental cartridge detaching during active overhead work or tight space operations.
• Easy Maintenance & Disassembly: Minimal replacement parts allow rapid cleaning, sanitizing, and field overhaul between work shifts.

Typical Applications

• Industrial Spray Painting & Coating: Used with organic vapor cartridges and P100 particulate filters during shop priming, enameling, and topcoat applications.
• Solvent Degreasing & Chemical Washing: Protects operators during parts washing, chemical wiping, and handling of volatile industrial solvents.
• Granding, Sanding & Metalworking: Paired with particulate filters for protection against metal grindings, composite dust, and airborne debris in MRO facilities.
