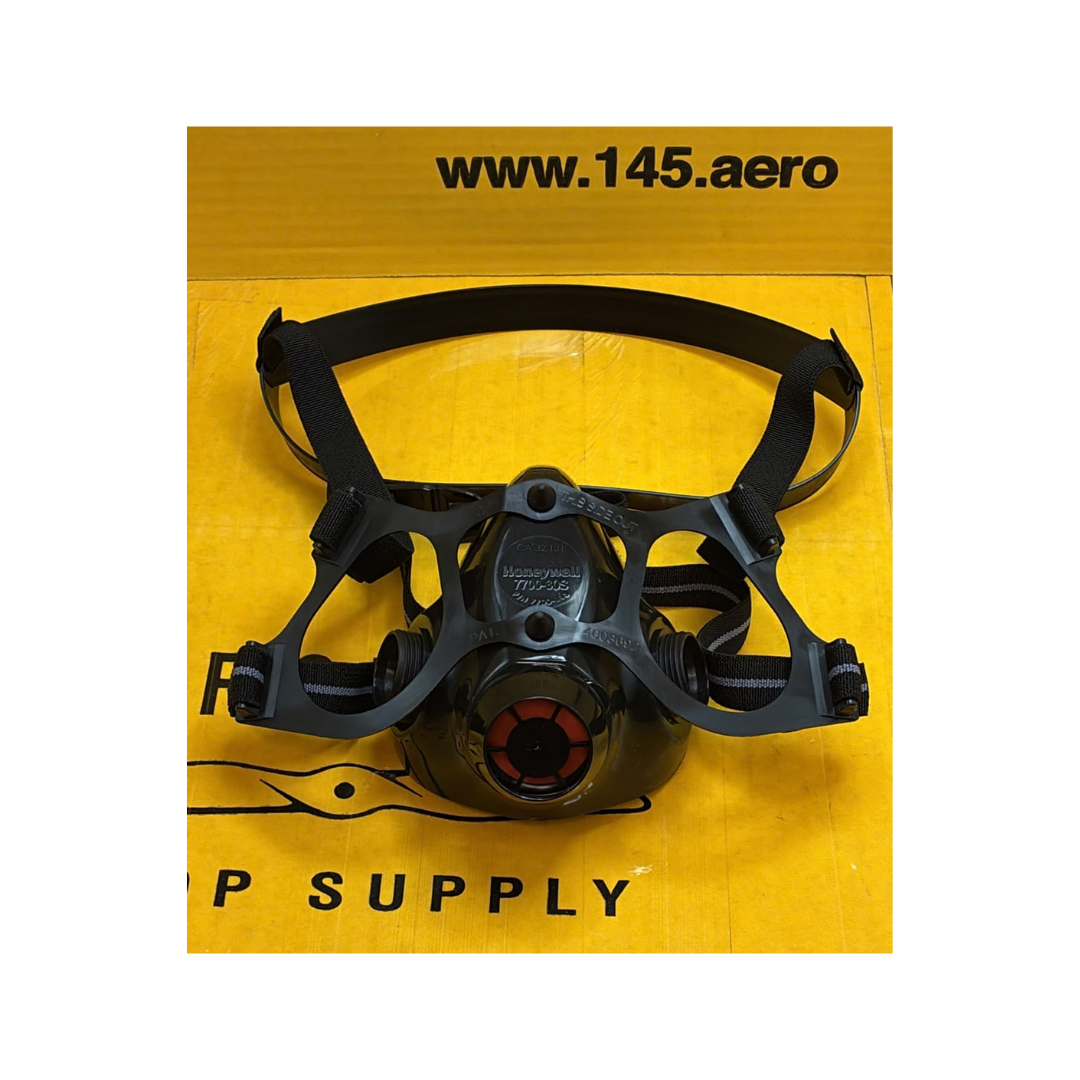

The North® 7700 Series Half Mask Respirator is the industry benchmark for reusable half-mask respiratory protection, engineered for demanding industrial, aerospace MRO, chemical processing, and paint-spray environments. Crafted from 100% medical-grade silicone, the North 7700 facepiece conforms dynamically to facial contours to provide a comfortable, non-irritating seal during extended work shifts. Equipped with dual N-Series cartridge connectors, it accepts the complete lineup of Honeywell North® thread-on cartridges, filters, and combination elements. Its low-profile design maximizes field of vision and easily integrates with safety eyewear and face shields, while the cradle suspension system ensures balanced weight distribution and secure seal retention.

Technical Specifications & Cross-References

• Manufacturer:  North®
• Product Line: North® 7700 Series Reusable Half Masks
• Facepiece Material: 100% Medical-Grade Silicone (Latex-Free)
• Cartridge Connection Type: Dual N-Series Thread-On Connectors
• Harness Type: Dual-Cradle Head Strap Assembly with Woven Elastic Straps
• Available Sizes: Small (770030S), Medium (770030M), Large (770030L)
• Exhalation Valve: Low-resistance inhalation/exhalation diaphragm assembly
• PAPR & Supplied Air Adaptability: Converts easily to PAPR (Powered Air-Purifying Respirator) or Continuous Flow Supplied Air systems

Approved Specifications & Regulatory Conformance:

The Honeywell North 7700 Series meets rigorous industrial safety and occupational respiratory standards:

• NIOSH 42 CFR 84 Approval: Fully certified under NIOSH guidelines when paired with approved Honeywell North N-Series filters and cartridges.
• OSHA Assigned Protection Factor (APF): APF = 10 when properly fit-tested and used in accordance with OSHA 1910.134 guidelines.
• ANSI & CSA Compliance: Meets ANSI Z88.2 respiratory protection criteria and CSA Z94.4 standards.

Key Features & Performance Benefits

• 100% Medical-Grade Silicone Construction: Delivers superior facepiece flexibility, durability, and skin compatibility without causing contact dermatitis or pressure points.
• Anatomic Sealing Flange: The sealing area features varying wall thicknesses to offer optimal sealing flexibility around the nose bridge and chin.
• Low-Profile Wide Field of View: Swept-back cartridge positioning provides an unobstructed line of sight and prevents interference with safety glasses or welding helmets.
• Dual N-Series Connector Compatibility: Threaded connection system secures cartridges tightly while preventing accidental dislodgement during active movement.
• Reduced Breathing Resistance: Large inhalation and exhalation valve ports minimize breathing fatigue during strenuous physical labor.

Typical Applications

• Aerospace & Industrial Painting / Spraying: Used with organic vapor cartridges and P100 particulate filters during aircraft primer, enamel, and topcoat applications.
• Chemical Handling & Solvent Washing: Protects personnel during parts cleaning, degreasing, and handling of volatile organic compounds (VOCs).
• Grinding, Sanding & Composite Maintenance: Paired with particulate filters for protection against composite dust, silica, and metallic grindings in MRO shops.
