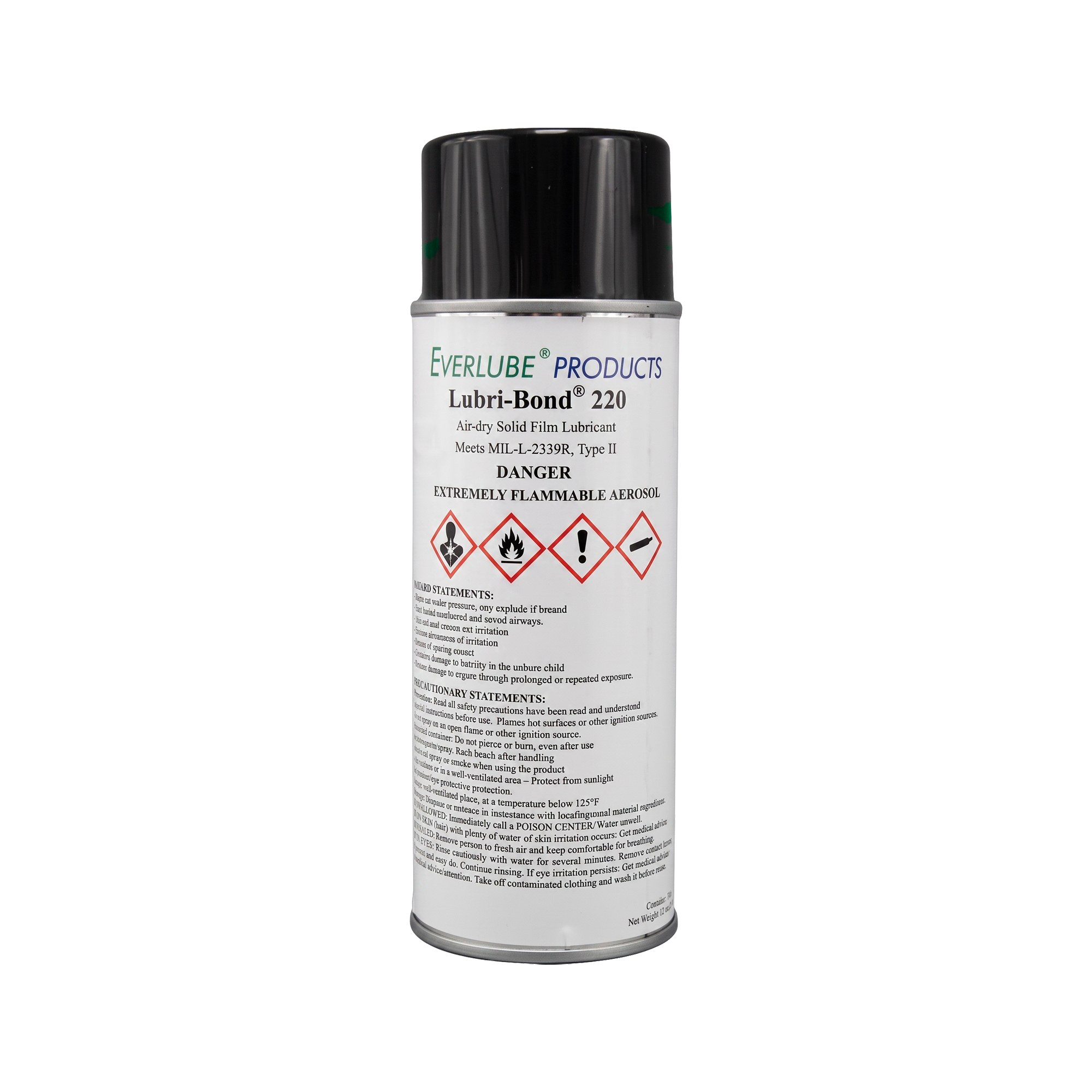

Lubri-bond 220 Air Drying MoS2 based Solid Film Lubricant MIL-L-23398 TYII - 12 oz
Hazmat
(IATA DG)
SKU:PLB220AE
- Regular price
- $43.29 USD
- Sale price
- $43.29 USD
- Regular price
-
All products shipped with manufacturer certificates!
Volume discounts available. Please contact: sales@145.aero
Heads up! A $15.00 USD low-order fee applies to total orders under $50.00 USD.
Lubri-Bond® 220 is an air-drying, molybdenum disulfide (MoS_2) based solid film lubricant manufactured by Everlube Products for critical aerospace, defense, and industrial applications. Formulated to strictly comply with MIL-L-23398 Type II (and MIL-PRF-46147), Lubri-Bond 220 utilizes an advanced epoxy binder system that cures at ambient shop temperatures to form a durable, low-friction protective barrier. Engineered to eliminate metal-on-metal galling, seizing, and fretting wear under heavy mechanical loads, this fast-curing dry film lubricant provides robust resistance to solvents, fuels, and environmental corrosion without requiring high-temperature oven baking.
Technical Specifications & Cross-References
- Manufacturer: Everlube® Products (Curtiss-Wright)
- Product Line: Lubri-Bond® Series (Lubri-Bond 220)
- Chemical Base: Epoxy-Bonded Molybdenum Disulfide ($MoS_2$) Compound
- Physical State: Liquid Coating for Spray, Dip, or Brush Application
- Color / Finish: Dark Gray to Flat Black
- Cure Profile: Fast Air Dry (Tack-free in 5–15 minutes; Full ambient cure in 24 hours at 77°F / 25°C)
- Operating Temperature Range: -100°F to 250°F (-73°C to 121°C) continuous performance
- VOC Content: Formulated to meet solvent compliance standards for industrial air-dry coatings
Approved Specifications & Aviation Conformance:
Lubri-Bond 220 is qualified against rigorous military, defense, and commercial aerospace standards:
- U.S. Military Specification: Fully qualified to MIL-L-23398 Type II and MIL-PRF-46147 Type II (Lubricant, Solid Film, Air-Drying).
- QPL Listed: Maintained on the Qualified Products List (QPL) for military and commercial airframe field maintenance.
- Fluid Immunity: Resists breakdown from intermittent exposure to aviation jet fuels, hydraulic fluids (Skydrol), lubricating oils, and cleaning solvents post-cure.
Key Features & Performance Benefits
- Ambient Air-Cure Convenience: Cures completely at room temperature, making it ideal for field-repair touch-ups, large airframe structures, and heat-sensitive subassemblies.
- Extreme Pressure Lubrication: High-concentration $MoS_2$ particle array delivers a low coefficient of friction, preventing thread galling, binding, and scuffing under extreme dynamic contact.
- Corrosion Barrier Defense: Durable epoxy resin matrix acts as a protective barrier over aluminum, steel, titanium, and stainless steel alloys against oxidation and chemical attack.
- Clean Dry-Film Finish: Will not attract or trap flight-line grit, sand, dust, or environmental particulates once fully cured.
- Exceptional Substrate Adhesion: Formulated for superior bonding onto properly prepped metal surfaces, resisting flaking, micro-chipping, or migration under high vibration.
Typical Applications
- Airframe Linkages & Structural Hardware: Essential for touch-up repairs and maintenance of hinges, brackets, pins, sleeve bearings, and guide tracks on fixed-wing and rotary aircraft.
- Threaded Fasteners & Couplings: Applied to high-tension bolts, fittings, and sleeve joints to prevent galling and ensure consistent torque-tension relationships.
- Gears, Slides & Actuators: Used on open gears, sliding mechanisms, and actuator shafts operating in dusty, high-vibration, or solvent-exposed environments.
